CBN-FB2
Auf Lager
3
EDP
8526556
Familie
CBN-FB2
Größe
R1X5X4
Kategorie
Endmills
Beschreibung

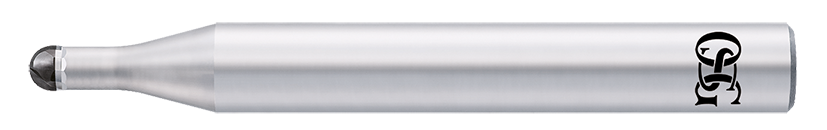

2 flutes CBN ball end mill Excellent ball radius accuracy for high-quality surface finishing Optimized shank design for ultra-high precision
Lieferzeit
Lieferung am nächsten Geschäftstag
(bei Bestellung vor 16 Uhr)
In den Warenkorb
Material

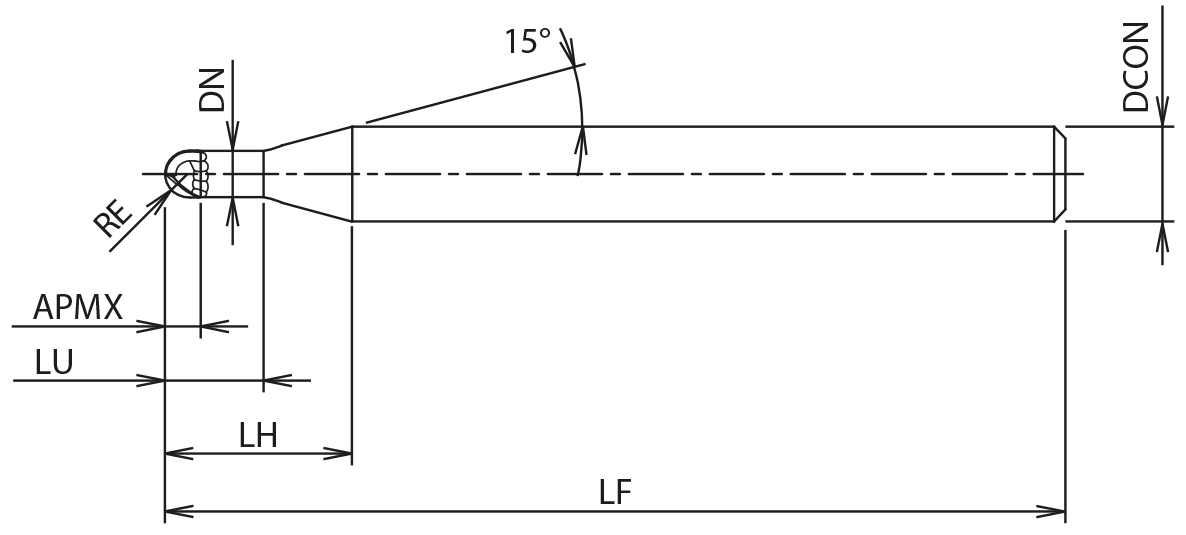

Spezifikationen
DCON (Ød)
4
LU/LH/APMX (l)
1,2
LF/OAL (L)
38
LU/LCF (l1)
5
RE (R)
1
DN (d1)
1,97
