VA-OIL-XPF
En stock
0
EDP
48444169
Familia
VA-OIL-XPF
Tamaño
EUR M10x1,5
Categoría
Taps
Descripción

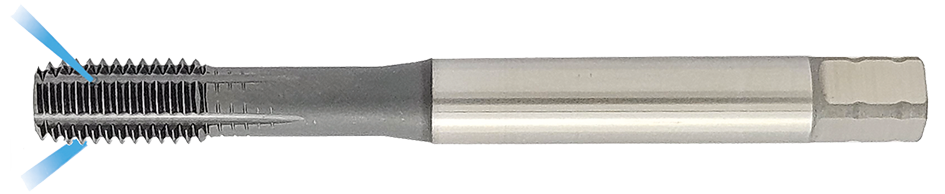

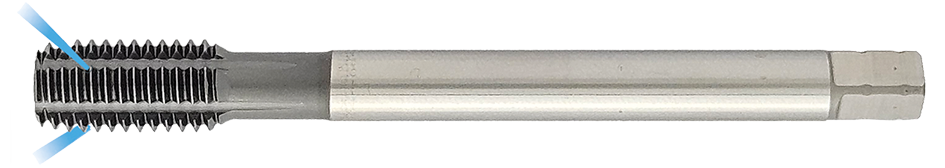

Powder metal forming tap for through & blind holes AlCrN coating For general steel, stainless steels and aluminum Side through coolant
Tiempo de entrega
No Stock - Contáctenos
Añadir a la cesta
Material
Especificación

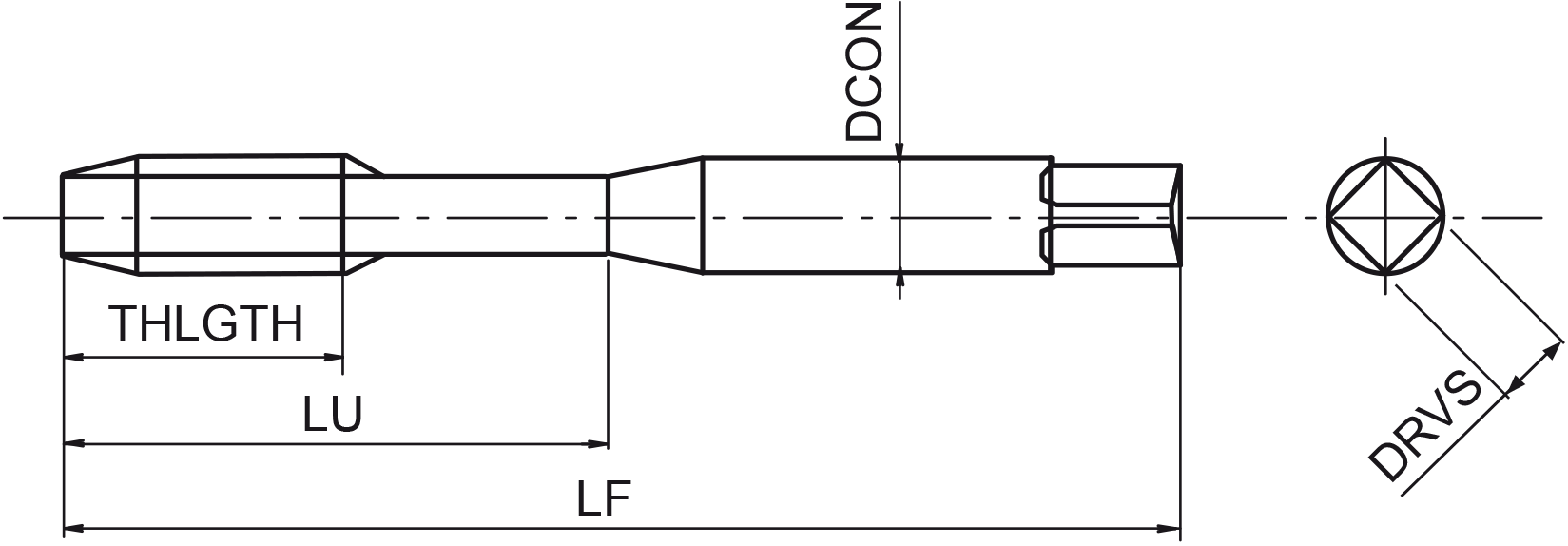

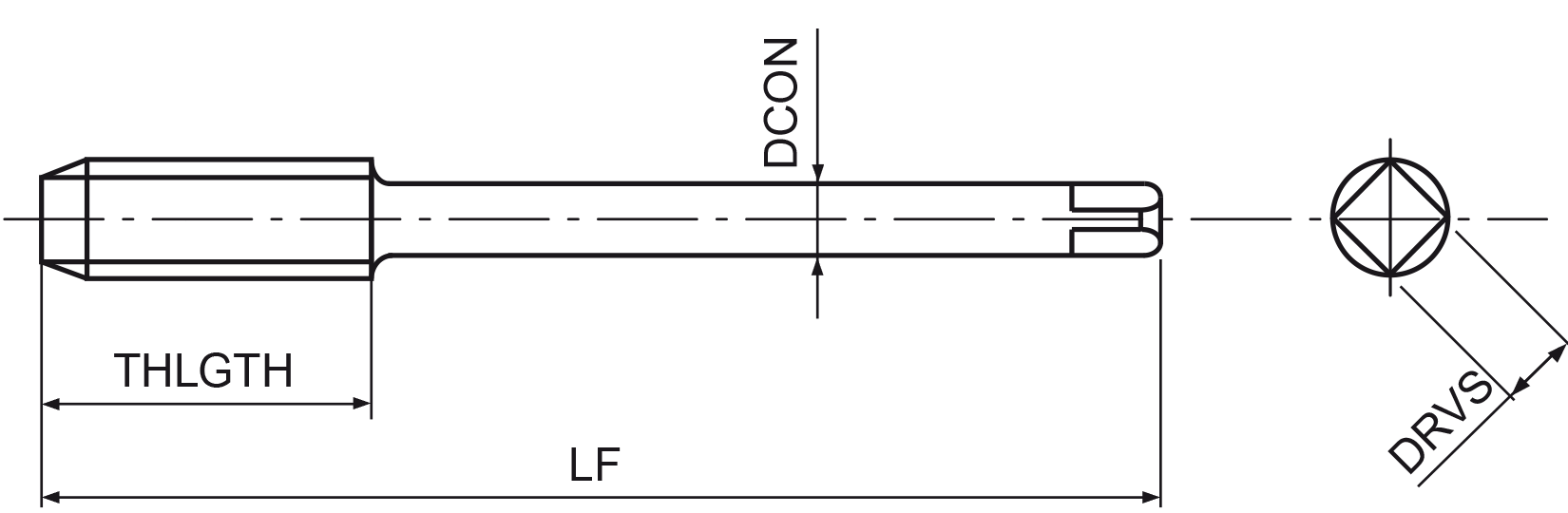

DCON (Ød)
10
Tamaño de la rosca
10
Paso
1,5
LU/LH/APMX (l)
15
LF/OAL (L)
100
LU/LCF (l1)
39
ZEFP (ZΔ)
5
DRVS (a)
8
Type
1
Recomendado para agujeros piloto
There is no Drill for this Tap.
Thread Pro
Generating codes for complex machining couldn’t be easier with ThreadPro, which has eliminated the hassle of having to “enter data as text, copy and replace.” The configuration of multiple paths, which was not adjustable before, has been greatly simplified to enable the easy creation of zero cut programs. In addition to multiple feed (machining at each cutting edge length), single feed (1 pitch per cut) is also available, which is ideal for machining high hardness materials. Last but not least, with the capability to review machining trajectory, trouble-free tool movement can be confirmed to minimize tool damage. The new ThreadPro is available in 12 different languages and supports eight NC programming languages. The software incorporates “RPRG” value to reduce setup, machining time and achieve stable tool life.
