PlusLine - EPL-TI-7FL
Pronto a magazzino
29
EDP
EP02141001
Categoria
PlusLine - EPL-TI-7FL
Dimensione
usLine D10 x R0,5 EPL-TI-
Categoria
Endmills
Descrizione

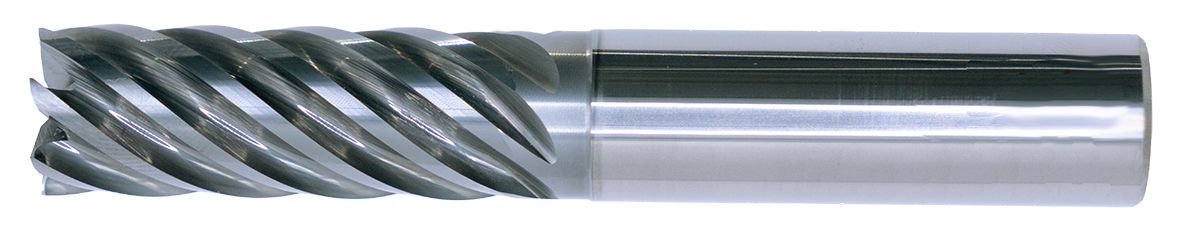

Carbide end mills with AlCrN coating For Aerospace Alloys 7 flutes, centre cutting,square end and corner radius
Consegna
Consegna primo giorno lavorativo successivo
(Ordinare prima delle ore 16:00
)
Aggiungi al carrello
Materiale
Specifiche
DC (ØD)
10
DCON (Ød)
10
LU/LH/APMX (l)
22
LF/OAL (L)
73
LU/LCF (l1)
27
RE (R)
0,5
ZEFP (ZΔ)
7
DN (d1)
9,8
Thread Pro
Generating codes for complex machining couldn’t be easier with ThreadPro, which has eliminated the hassle of having to “enter data as text, copy and replace.” The configuration of multiple paths, which was not adjustable before, has been greatly simplified to enable the easy creation of zero cut programs. In addition to multiple feed (machining at each cutting edge length), single feed (1 pitch per cut) is also available, which is ideal for machining high hardness materials. Last but not least, with the capability to review machining trajectory, trouble-free tool movement can be confirmed to minimize tool damage. The new ThreadPro is available in 12 different languages and supports eight NC programming languages. The software incorporates “RPRG” value to reduce setup, machining time and achieve stable tool life.
