VA-XPF
In stoc
590
EDP
48442144
Familia
VA-XPF
Mărime
EUR M 4x0,7
Categorie
Taps
Descriere

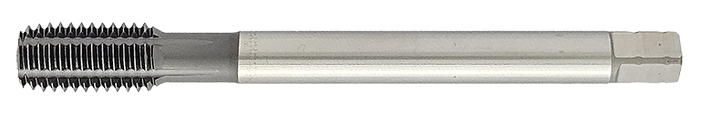

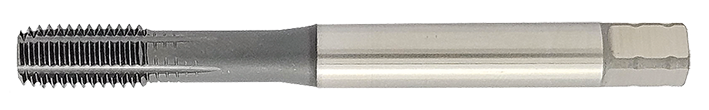

Powder metal forming tap for through & blind holes AlCrN coating For general steel, stainless steels and aluminum
Termen de livrare
Livrare in urmatoarea zi lucratoare
(Comanda inainte de ora 16:00)
Adauga in cos
Material
Specificatii
DCON (Ød)
4,5
Marimea filetului
4
Pas
0,7
LU/LH/APMX (l)
8
LF/OAL (L)
63
LU/LCF (l1)
21
ZEFP (ZΔ)
4
DRVS (a)
3,4
Type
2
Burghie pilot recomandate
There is no Drill for this Tap.
Thread Pro
Generating codes for complex machining couldn’t be easier with ThreadPro, which has eliminated the hassle of having to “enter data as text, copy and replace.” The configuration of multiple paths, which was not adjustable before, has been greatly simplified to enable the easy creation of zero cut programs. In addition to multiple feed (machining at each cutting edge length), single feed (1 pitch per cut) is also available, which is ideal for machining high hardness materials. Last but not least, with the capability to review machining trajectory, trouble-free tool movement can be confirmed to minimize tool damage. The new ThreadPro is available in 12 different languages and supports eight NC programming languages. The software incorporates “RPRG” value to reduce setup, machining time and achieve stable tool life.
