S-POT
Auf Lager
224
EDP
48224000
Familie
S-POT
Größe
G 1/4x19
Kategorie
Taps
Beschreibung
HSSE spiral-point cutting tap for through holes Steam oxide treatment General purpose tapping in steels and stainless steels
Lieferzeit
Lieferung am nächsten Geschäftstag
(bei Bestellung vor 16 Uhr)
In den Warenkorb
Material

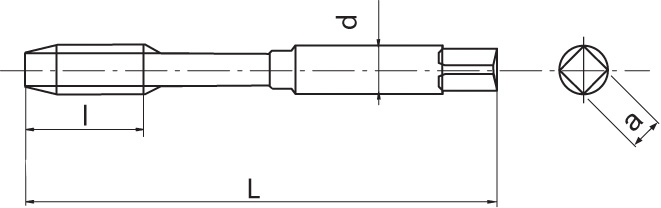

Spezifikationen
DCON (Ød)
11
Gerwindegröße
1/4
Steigung
19
LU/LH/APMX (l)
22
LF/OAL (L)
100
ZEFP (ZΔ)
3
DRVS (a)
9
Empfohlener Pilotbohrer
There is no Drill for this Tap.
Thread Pro
Generating codes for complex machining couldn’t be easier with ThreadPro, which has eliminated the hassle of having to “enter data as text, copy and replace.” The configuration of multiple paths, which was not adjustable before, has been greatly simplified to enable the easy creation of zero cut programs. In addition to multiple feed (machining at each cutting edge length), single feed (1 pitch per cut) is also available, which is ideal for machining high hardness materials. Last but not least, with the capability to review machining trajectory, trouble-free tool movement can be confirmed to minimize tool damage. The new ThreadPro is available in 12 different languages and supports eight NC programming languages. The software incorporates “RPRG” value to reduce setup, machining time and achieve stable tool life.
