VA-OIL-XPF (Form E)
Op voorraad
0
EDP
48446179
Familie
VA-OIL-XPF (Form E)
Afmeting
EUR M12x1,75 VA-OIL-XPF (FORM E) DIN
Categorie
Taps
Omschrijving

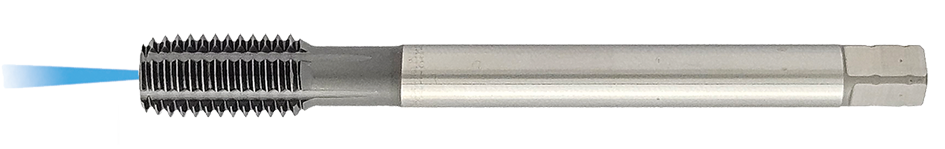

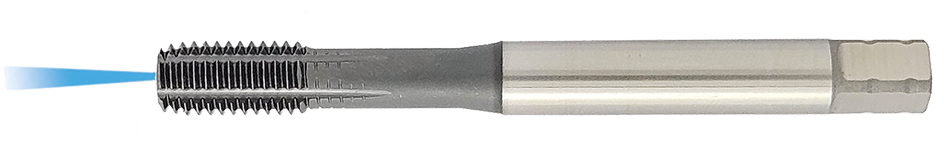

Powder metal forming tap for blind holes AlCrN coating For general steel, stainless steels and aluminum Chamfer Form E, center through coolant
Levertijd
No Stock - Neem contact met ons op
In winkelwagentje
Materiaal

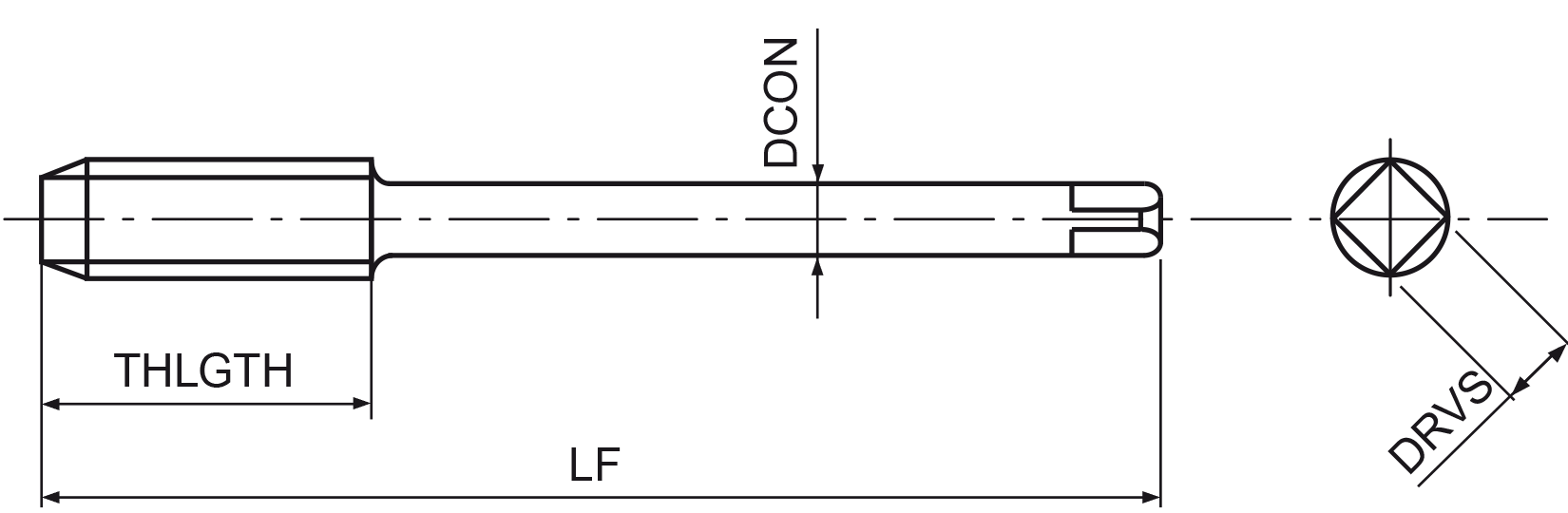

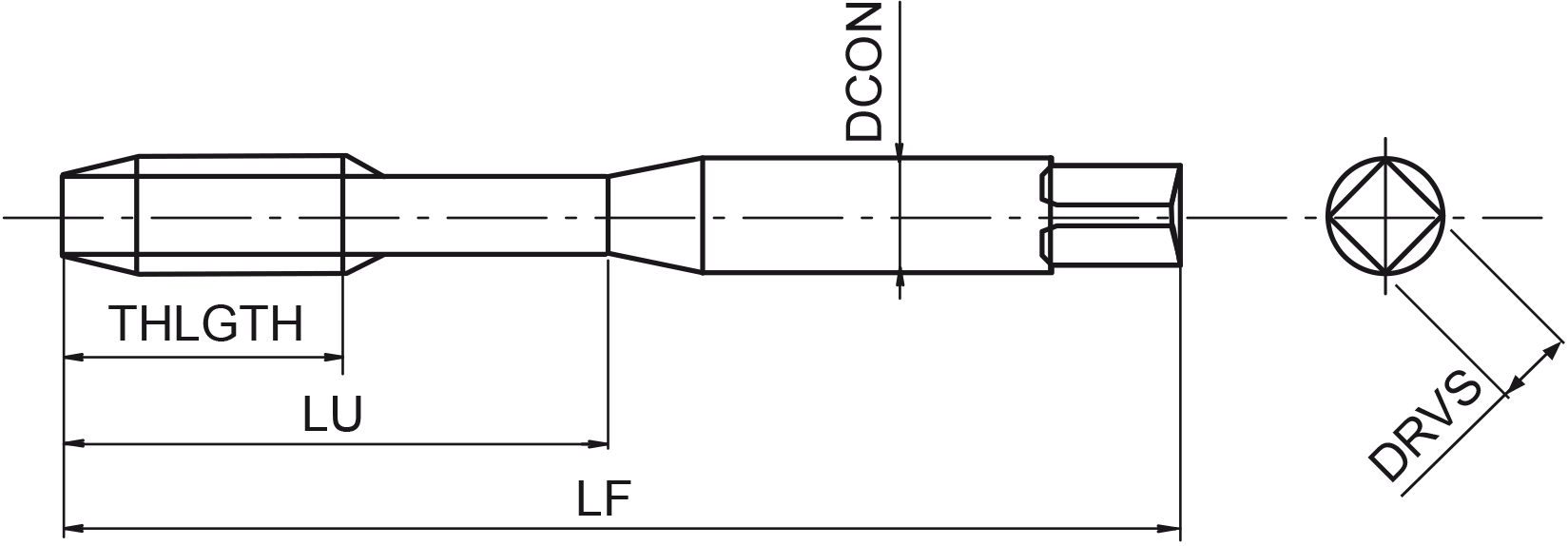

Specificaties
DCON (Ød)
9
Draadafmeting
12
Spoed
1,75
LU/LH/APMX (l)
18
LF/OAL (L)
110
ZEFP (ZΔ)
5
DRVS (a)
7
Type
2
Aanbevolen pilot boor
Productfamilie
EX-SUS-GDS
Levertijd
Volgende dag geleverd
(bestel voor 16:00 uur)
Thread Pro
Generating codes for complex machining couldn’t be easier with ThreadPro, which has eliminated the hassle of having to “enter data as text, copy and replace.” The configuration of multiple paths, which was not adjustable before, has been greatly simplified to enable the easy creation of zero cut programs. In addition to multiple feed (machining at each cutting edge length), single feed (1 pitch per cut) is also available, which is ideal for machining high hardness materials. Last but not least, with the capability to review machining trajectory, trouble-free tool movement can be confirmed to minimize tool damage. The new ThreadPro is available in 12 different languages and supports eight NC programming languages. The software incorporates “RPRG” value to reduce setup, machining time and achieve stable tool life.
